Specification

Cell Brand: CATL
Chemistry: Lithium Iron Phosphate(LiFePO4 or LFP)
Nominal Voltage: 3.2V
Operational Voltage: 2.5V – 3.65V
Nominal Capacity: 302Ah
Impedance (1KHz): ≤0.18±0.05mΩ
Weight: 5.51±0.3kg
Dimensions (mm): 207.2*173.93*71.65±0.5mm
Terminal: M6 Laser Welding Screw Hole
Cycle Performance: ≥4000 Cycles(0.5C/0.5C, 25±2°C, SOC≥80%)
Standard Charge/Discharge Current: 0.5C/0.5C
Standard Charge/Discharge Cut-off Voltage: 3.65V/2.5V
Max Continuous Charge/Discharge Current: 1C/1C
Recommended SOC window: 10%～90%
Residual Capacity Loss: Per month ≤3.5%
Charging Temperature: 0℃~65℃
Discharging Temperature: -30℃~65℃
Storage Temperature: -30~60°C

Document Download:

CATL 302Ah LiFePO4 Battery Cell Product Specification.pdf

Product Application:
Electric vehicle, RV, electric bicycles/scooters, golf carts, boats, trolling Motor, off-gird solar energy storage, and ESS.

NOTE!

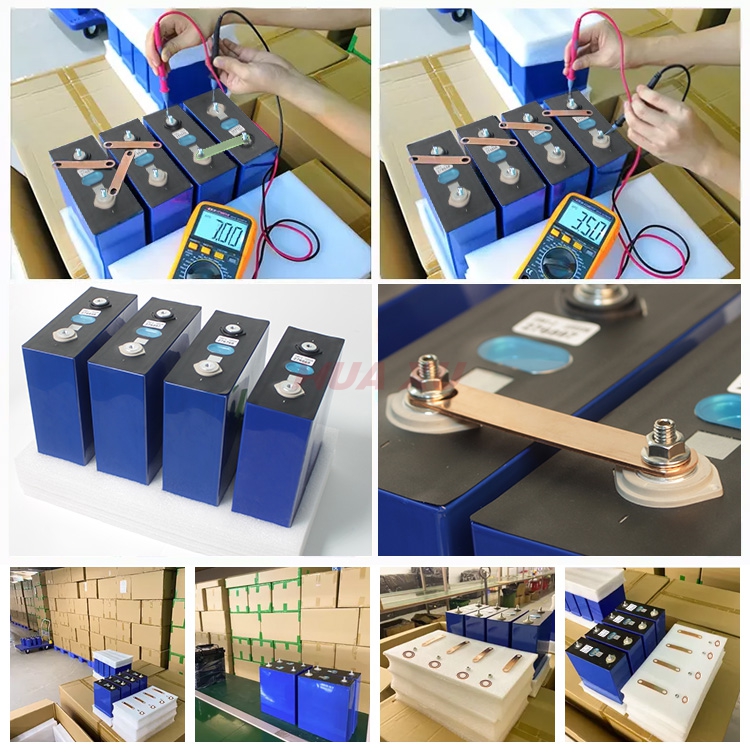

1. Each cell come with one busbar and two nuts by free.If need more please contact us online. Thank you!
2. Each cell shall be used under the strict monitor, control, and protection by the BMS.
3. Before the first use, always charge the cells to full voltage. | FAQ: LiFePO4 battery charging guide.
4. The battery is suitable for DIY lovers with experience.
