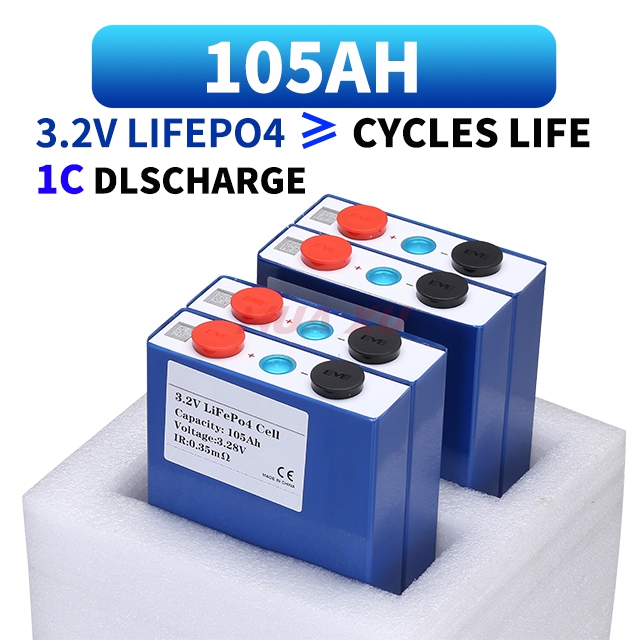

Specification

Battery brand: EVE
Battery model: LF105
Chemistry: Lithium Iron Phosphate(LiFePO4 or LFP)
Nominal voltage: 3.2V
Operational voltage: 2.5 V – 3.65 V
Nominal capacity: 105Ah
AC Impedance Resistance: ≤0.5mΩ
Weight: 1.98±0.1kg

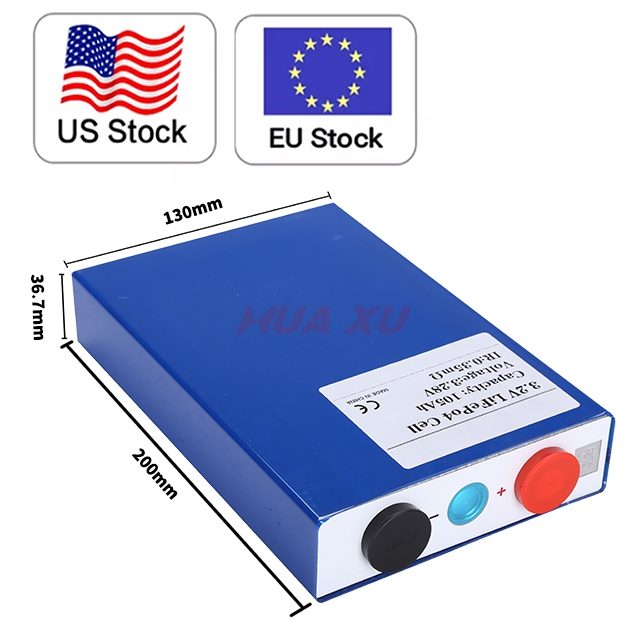

Dimensions (mm): 200.5*130.3*36.7±0.5mm
Terminal: M4 Screw Hole
Cycle life: ≥3500 cycles (1C/1C, 25±2℃, SOC≥80%)
Standard Charge/Discharge Current: 0.5C/0.5C
Standard Charge/Discharge Cut-off Voltage: 3.65V/2.5V
Continuous Charge/Discharge Current: 1C/1C
Pulse Charge/Discharge Ccurrent(30s): 2C/2C
Recommended SOC window: 10%～90%
Charging Temperature: 0℃~55℃
Discharging Temperature: -20℃~55℃

Download Document:

EVE 105Ah LiFePO4 Cell Product Specification

Product Application:
Electric vehicle, RV, electric bicycles/scooters, golf carts, boats, trolling Motor, off-gird solar energy storage, and ESS.

Product Feature:

• Highly automated production equipment to ensure battery consistency.

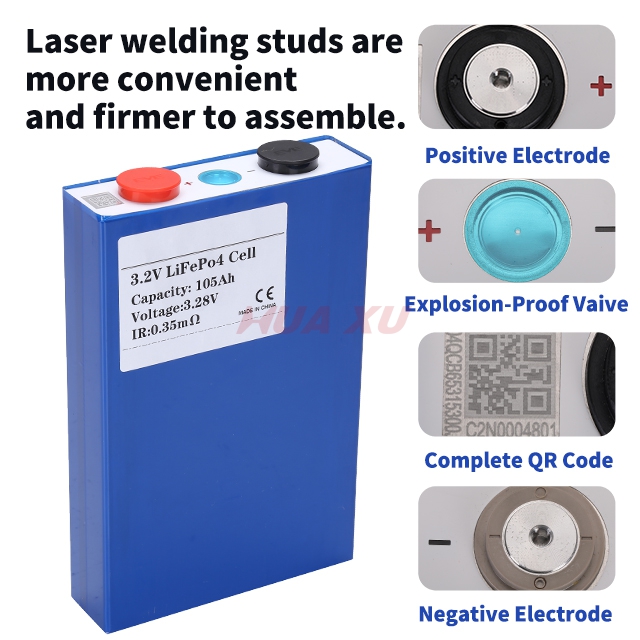

• Square aluminum shell structure, high-precision explosion-proof valve design, good safety performance.
• Low internal resistance, high discharge rate, and stable discharge platform.
• Green environment, ISO14000 approval, products meet GB and UN criteria, and ROHS compliant.
• Long cycle life.

NOTE!

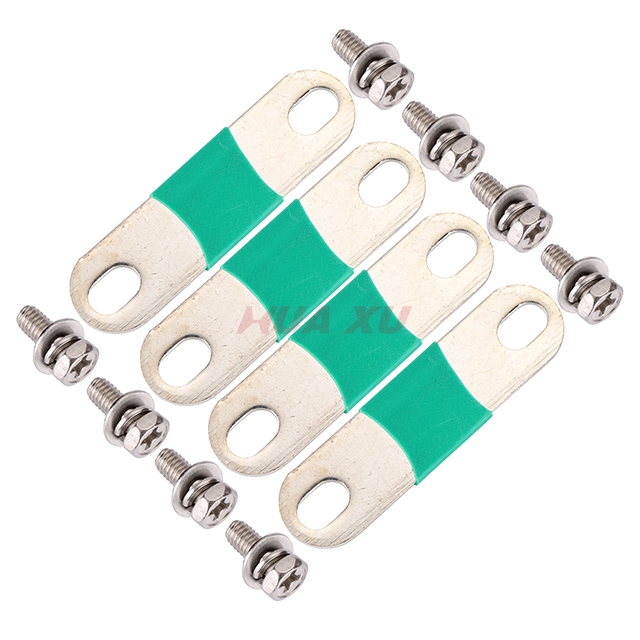

1. Each cell come with one busbar and two nuts by free.If need more please contact us online. Thank you!
2. Each cell shall be used under the strict monitor, control, and protection by the BMS.
3. Before the first use, always charge the cells to full voltage. | FAQ: LiFePO4 battery charging guide.
4. We will match (capacity, voltage, resistance) all cells before delivery.
5. The battery is suitable for DIY lovers with experience.
